Dependências
- Windows, instale o PIP e depois instale o Schemdraw com o PIP:
pip install schemdraw- Em GNU, Linux e UNIX, crie um ambiente virtual e instale com o PIP:
mkdir -p ~/.local/bin
python -m venv ~/.local/bin/venv
. ~/.local/bin/venv/bin/activate
pip install schemdrawCódigo Python:

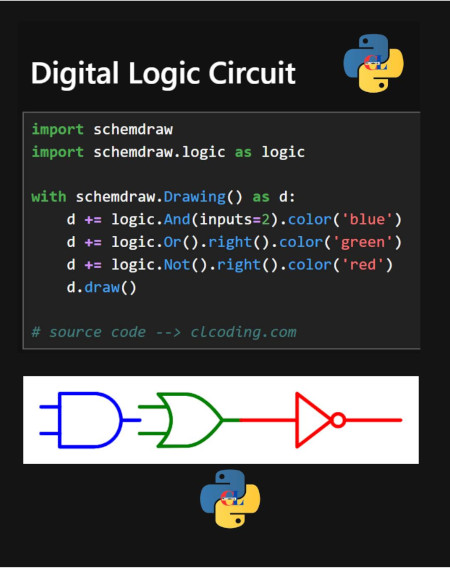

import schemdraw
import schemdraw.logic as logic
with schemdraw.Drawing() as d:
d += logic.And(inputs=2).color('blue')
d += logic.Or().right().color('green')
d += logic.Not().right().color('red')
d.draw()
